Basic Concepts¶

This tutorial introduces the basic concepts that you need to understand in order to use and employ hetida designer efficiently.

Transformation, Transformation revision (trafo)¶

The main entity of hetida designer. A transformation revision has a fixed interface (IO) that defines inputs and outputs and their respective data type. It can run a predefined operation on data provided to the inputs to get the resulting output, i.e. it can be "executed". Think of an abstract function with the inputs as arguments and the outputs as result. Ideally, it has no side effects and is deterministic, but that of course depends on the details of the predefined operation, e.g. the underlying code.

Often the shorter term transformation is used to denote a transformation revision.

Transformations come in two variants: Components, which actually consist of Python code and have a main function, and therefore are the basic building blocks. And workflows which are compositions of components and other workflows.

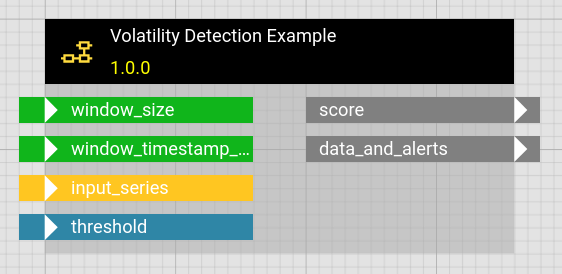

The user interface typically displays a preview for a transformation revision showing its name and version and indicating its IO interface:

A transformation revision also comes with

a description
a "category" corresponding to the drawer under which you can find it in the sidebar of the user interface. E.g. "Visualization", "Trignometric", etc.
a markdown documentation.

Transformation revision group¶

Transformation revisions are loosely grouped in revision groups. Transformations in the same revision group are not required to have the same input/output interface and can actually be completely different in nearly all aspects. But typically they have evolved from each other, possibly in a non-linear fashion (which is not tracked by hetida designer).

There is a concept of a "latest" revision in each group, which is the transformation revision that was last released and is not deprecated (see lifecycle).

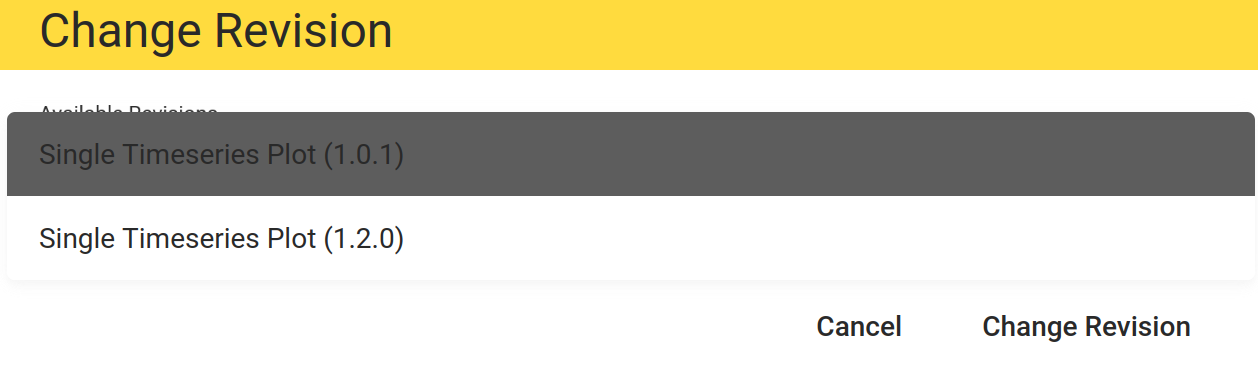

When changing the revision of an operator in a workflow in the hd user interface, you actually get to choose from other trafos of the same revision group.

You can create a new revision in the same revision group from an existing released (or deprecated) trafo — and you can copy an existing trafo to create a new transformation revision starting a new revision group.

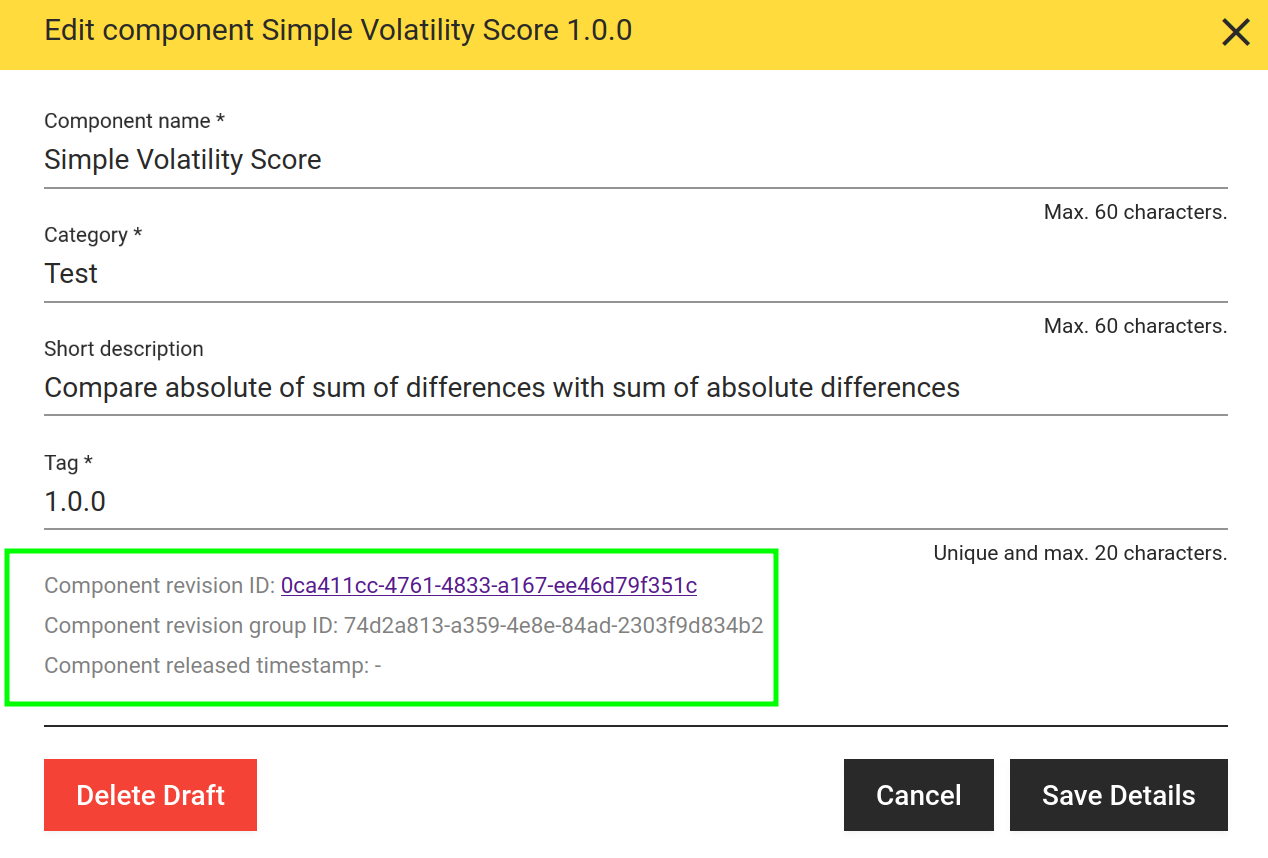

In the edit details dialog of each transformation

you can observe the trafo revision uuid and its revision group uuid:

See Versioning and Lifecycle for more details.

Workflow, Workflow Revision¶

A transformation which is a composition (in form of a DAG) of other transformations (both components and workflows). Workflow is another name for workflow revision.

The building blocks are called operators and are instances of other transformation revisions. Outputs of operators can be linked to inputs of other operators. Unlinked inputs and outputs can be exposed as interface of the workflow as part of the workflow's IO configuration.

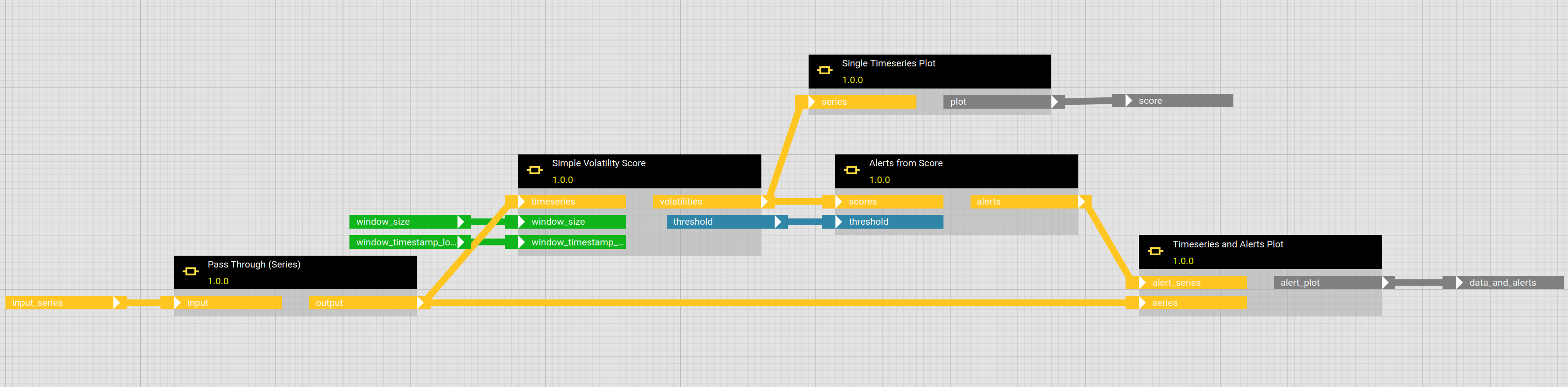

Workflows are shown in the workflow tab in the sidebar of the UI, can be created there and are edited in the workflow editor:

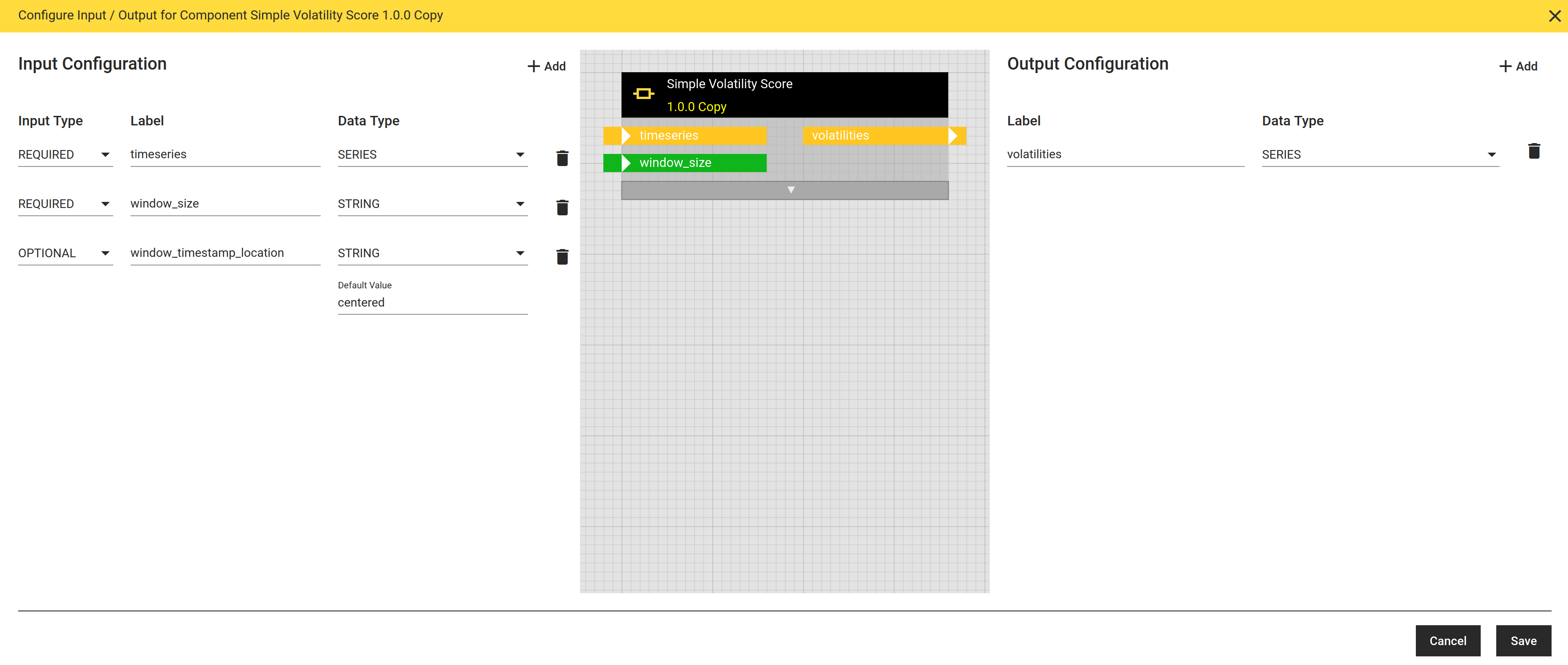

Their IO interface is managed in the IO dialog

Component, Component Revision¶

A transformation represented by a Python code module containing a main function together with some IO configuration that maps inputs to keyword arguments and outputs to the keys of a dictionary expected to be returned by the main function.

Can be used/instantiated as operators in a workflow. In fact, they are the basic building blocks: While workflows can be arbitrarily nested, at the bottom there always are operators referencing component revisions.

Components importing other components

Note that components can in fact import other components, see component tips. So the bottom component layer can have some depth in itself.

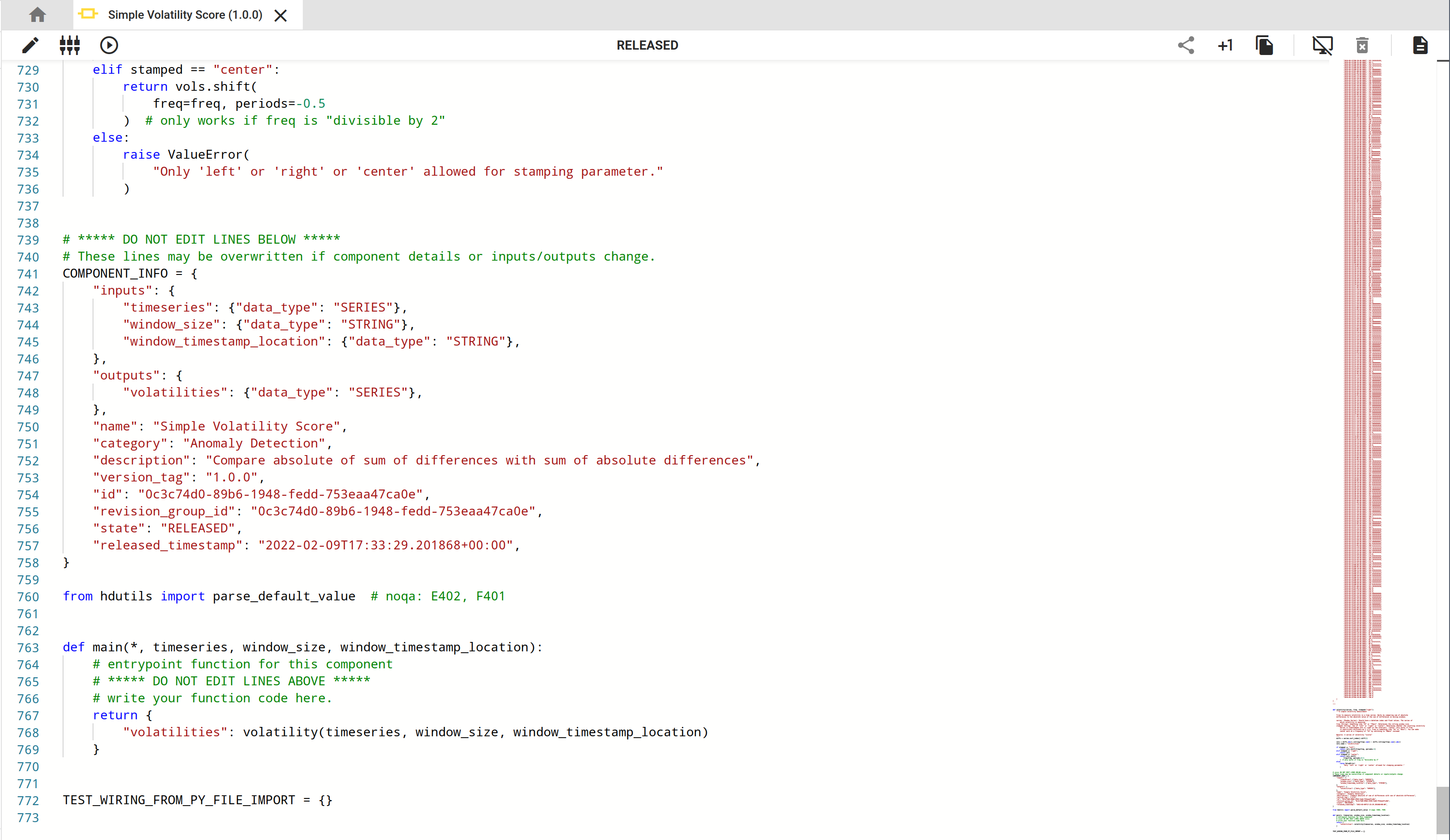

Components can be created and edited in the component editor user interface which basically is a code editor:

As for workflows, a component's IO interface is managed in the IO dialog.

Often components arise from functions developed locally in a Jupyter notebook or a full Python IDE and then are transferred to hetida designer when they have matured enough.

Component code can be self contained if the documentation is put in the module docstring and a test wiring and possibly a release wiring is fixed.

Besides doing formatting, the "broom" button can additionally help to achieve this.

Note that then the hdctl command line tool can be used to sync components (and workflows) between your local files and a hetida designer instance. There also is an import button on the bottom left corner of the "home" tab where a component can be imported by simply pasting its source code.

Operator¶

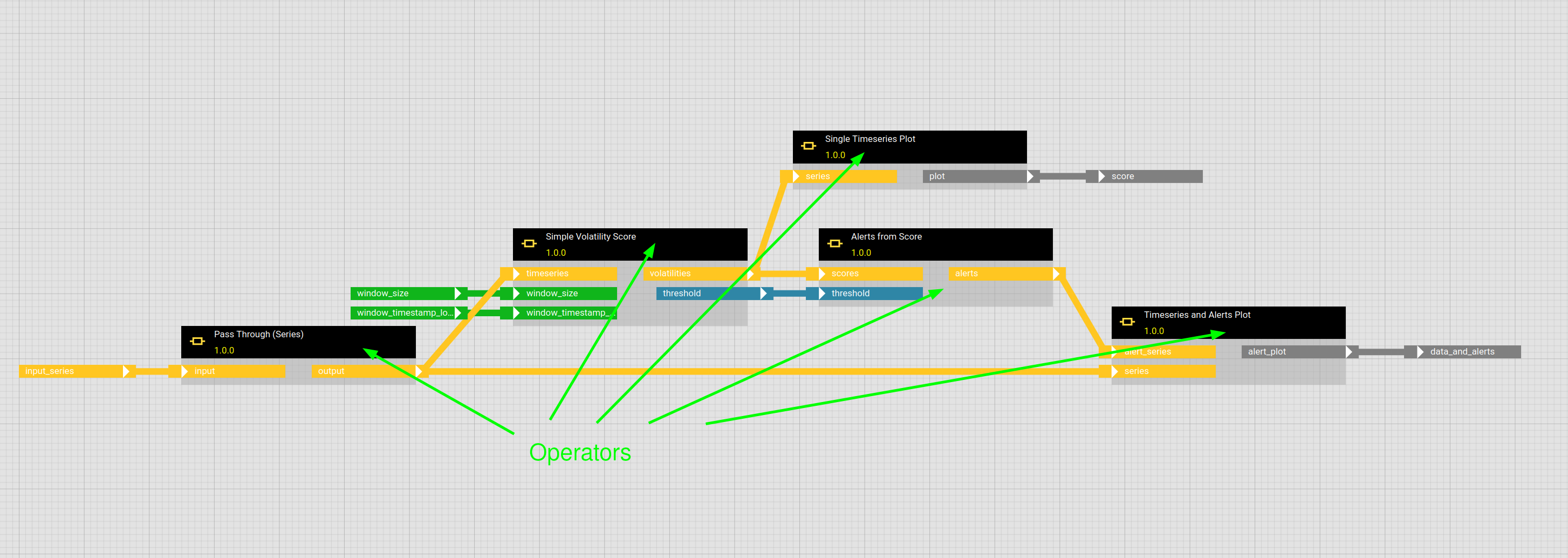

An instance of either a workflow revision or a component revision used in a workflow. These are the "boxes" you can drag and arange in the workflow editor. A workflow can contain multiple operators belonging to the same component or workflow revision.

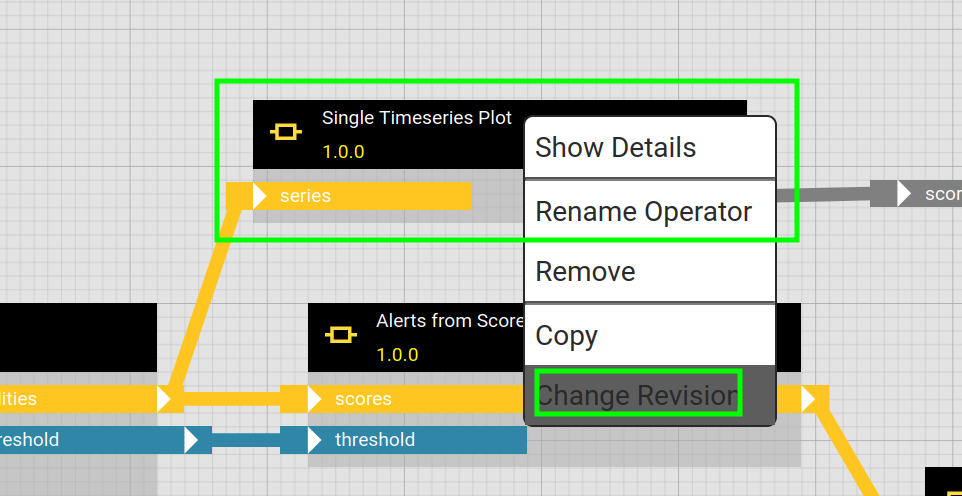

In a DRAFT Workflow you can change the revision of an operator in its context menu and select another revision from the same revision group. Furthermore you can upgrade all operators to the current DRAFT revision or the latest released revision using a button:

IO Config / IO Interface¶

Transformation revisions have an input/output configuration consisting of pairs of name and type. This is basically the interface that is employed when they are run or used as operators. As mentioned above this is managed in the IO dialog.

Note that inputs can have default values. And a required operator input in a workflow can be fixed to a constant value if it is not meant to be exposed.

Wiring¶

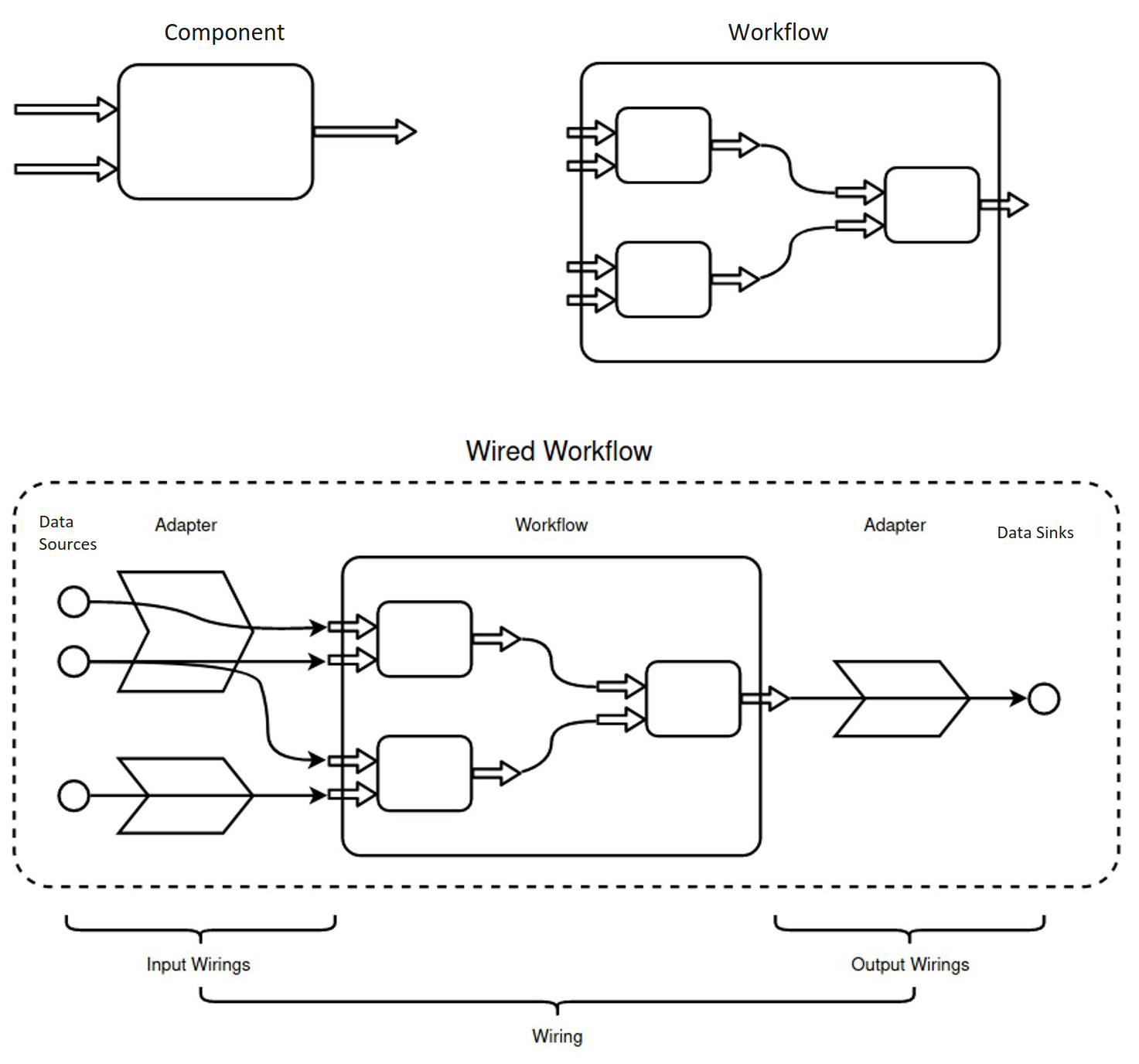

To run a transformation revision a wiring is necessary. A wiring maps data sources / data sinks via adapters to the inputs/outputs of the workflow revision IO config. I.e. it describes how and what data goes into each input and how and where output data should be sent / stored.

A wiring is represented by a json object. Example:

{
    "input_wirings": [
        {
            "adapter_id": "kafka",
            "filters": {
                "message_value_key": "status"
            },
            "ref_id": "base",
            "ref_id_type": "THINGNODE",
            "ref_key": "kafka_cluster1_metadata(any)",
            "type": "metadata(any)",
            "use_default_value": false,
            "workflow_input_name": "in_any"
        }
    ],
    "output_wirings": []
}

A wiring does not have to wire all outputs of a transformation revision: Unwired outputs are automatically wired to the direct_provisioning adapter which means the results are simply returned as part of the response to the execution request. There are also "shorter" uri wirings.

Adapter¶

Adapters are pieces of software that provide access to data sources or data sinks in order to make them available for execution of transformation revisions.

Typically, adapters connect to databases (SQL, NoSQL, timeseries databases, ...), storage (files, blob/cloud storage) or message queues (e.g. Kafka).

Adapters have two purposes:

to actually provide and receive data
"discoverability": to offer data sources and sinks for wiring, e.g in the hetida designer user interface to provide a way to find them in hierarchies and search for them.

For the later an adapter has to provide an API.

The base installation comes with several built-in adapters and a demo adapter that demonstrates how to develop your own adapters from scratch.

Lifecycle¶

Transformation revisions can be in either of the three states DRAFT, RELEASED or DEPRECATED / DISABLED.

They are only editable in the UI in the initial DRAFT state.
Through Publishing they are switched to RELEASED state.

RELEASED trafos cannot be edited anymore. This ensures trackable execution runs (reproducibility). You can of course create a new revision to make further edits or a copy. For relasing a workflow, all its operators must refer to released trafos. Similarly, releasing a component is only possible if it does not import other components which are in state DRAFT..
RELEASED transformations cannot be deleted, but they can be deprecated (aka disabled).

This means they still exist and workflow revisions containing operators refering them can still be executed. They are hidden in the sidebar by default (switch the respective toggle to show them). You cannot create new operators from them. Additionally, the user interface marks existing operatores as deprecated and invites to update to another revision of the same revision group.
Component and Workflow revisions in DRAFT state can actually be deleted.

See Versioning and Lifecylce in hetida designer for more details.

Transformation Execution¶

The process of actually executing (running) a transformation revision always requires a wiring in order to specifiy where input data comes from and where output data should go.

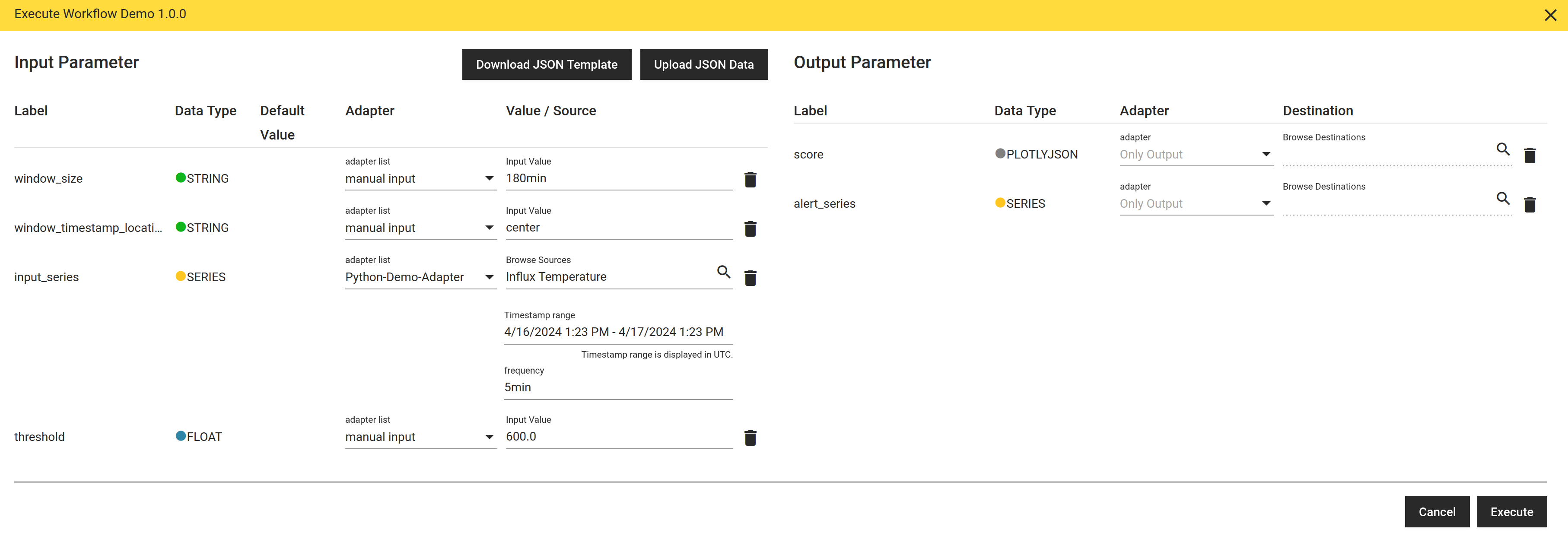

In the hd user interface execution can be triggered via the test execution button. This opens a dialog where you can specify a wiring, including directly providing values via manual input.

In production, execution is often triggered regularly (scheduled) or event-based by other systems / services. Typically this is done by sending http requests to one of the corresponding backend execution API endpoints like /api/transformations/execute.

Note that every component and workflow can be executed this way immediately after creation, even in DRAFT mode. There is no additional deployment step required.

Another option for event-based execution is Kafka execution or, with a focus on streaming use cases, the Kafka consumption mode.

See Running in production tutorial for more details.

Documentation¶

To every workflow and component revision a markdown documentatio including LaTeX can be written and displayed.

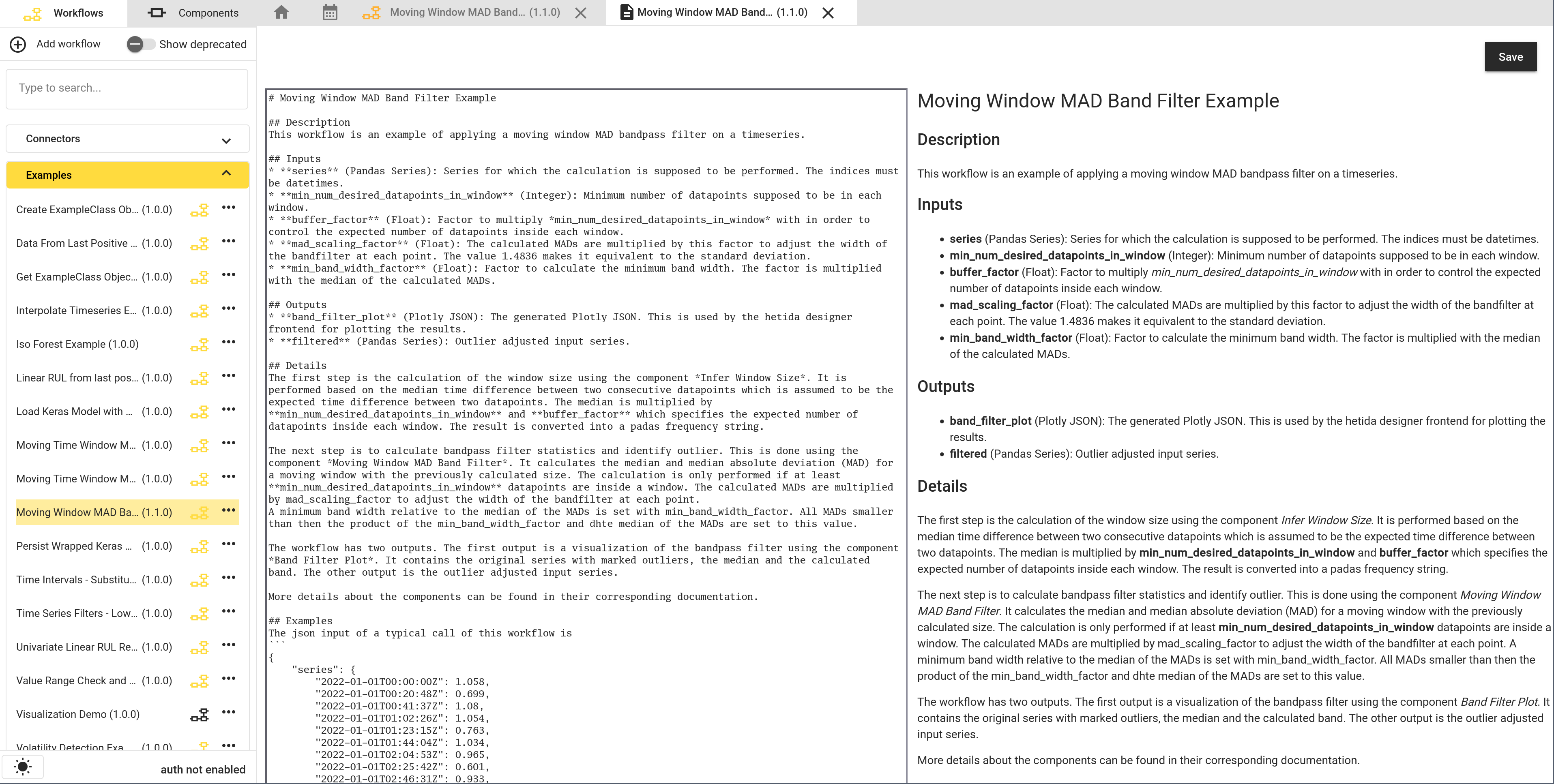

documentation editor — Documentation editor

This documentation can be queried by external systems via the hetida designer backend api.
